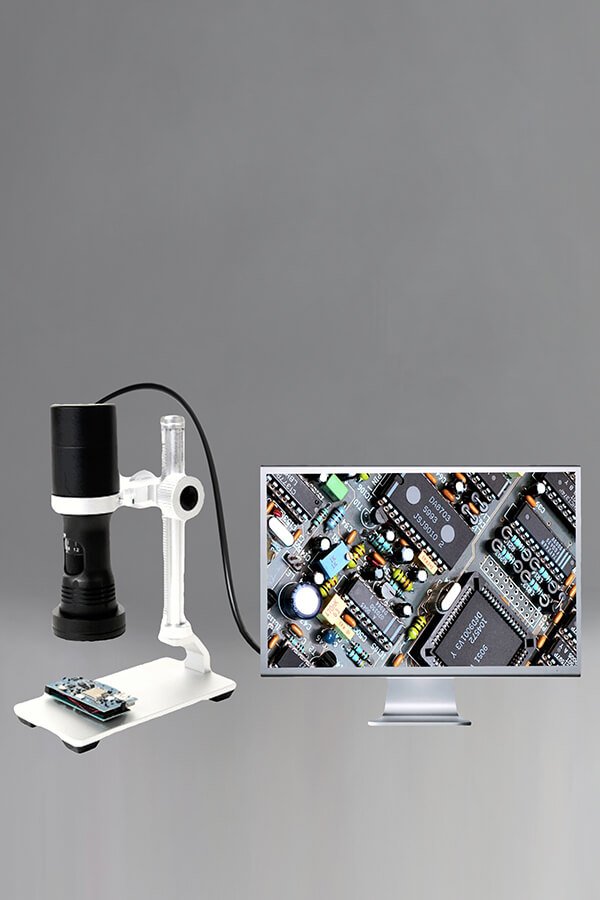

MZO EDRL/DRL Camera Parameters

• Sensor Size (mm): Sony IMX307(C) 1/2.8" (5.57x3.13)
• Circulating Camera: Off/3 minutes/5 minutes/10 minutes. When the flash memory card is full, the foremost video data will be deleted and the video will be saved.
• HDR High Dynamic Range: On/Off (When power on, the video recording function will be turned on automatically if any object moves under the lens without manual operation.)
• Exposure Compensation: 7 grades for option
• Date Label: Display/Close-Date and Time can be selected on the screen

In Photo Mode:

• Photograph Delay: Single. 2 seconds. 5 seconds. 10 seconds.
• Photo Pixels: 1.3 M * 2 M * 5 M * 8 M * 10 M * 12 M
• Continuous Shootings: 3 consecutive shots
• Photo Quality: Quality/Standard/Compression
• Sharpness: Strong/Standard/Soft
• Color: Nothingness/Black and White/Nostalgia
• ISO: Automatic * 100 * 200 * 400
• Exposure Compensation: 7 grades for option
• Photo assist: Anti-hand shock on/off
• Date label: On/Off
• Watch: Up/Down Delete Protection

Sensor Size (mm)
Sony IMX307(C)
1/2.8" (5.57x3.13)

Pixel (μm)
2.9x2.9

G Light Sensitivity
1300mv with 1/30s

FPS/Resolution
60@1920*1080(HDMI)

Sampling Average
1x1

Exposure Time (ms)
0.01~1000

HDMI Interface Digital Camera Module

HDMI
Comply with HDMI1.4 standard. 1080P format video output for standard FHD monitor

LED
LED status indicator

USB Mouse
Connect USB mouse for easy operation with embedded XCamView software

5V2A
Power adapter connection (5V/2A)

USB3.0
Connect a USB stick for picture and video storage

Camera Hardware

HDMI 1080P Camera
Comply with HDMI1.4 standard; 60fps@1080P

Sensor
Sony IMX307(C)，1/2.8"(5.57x3.13) ，Pixel size 2.9x2.9um

G Sensitivity /Dark Signal / Dynamic Range /SNR
1300mv with 1/30s/NA/NA/NA

FPS/Resolution
60@1920*1080(HDMI)

Exposure Time
0.01~1000ms

Hardware

Video Saving
Video format：2M(1920*1080) H264 encoded MP4 file；
Video saving frame rate：50~60fps (related with SD card performance);

Image Capture
2M (1920*1080) JPEG image in SD card

Measurement Saving
Measurement information saved in different layer with image content;
Measurement information is saved together with image content in burn in mode.

ISP Function
Exposure (Automatic / Manual Exposure) / Gain， White Balance (Manual / Automatic / ROI Mode) ， Sharpening， 3D Denoise， Saturation Adjustment， Contrast Adjustment， Brightness Adjustment， Gamma Adjustment， Color to Gray， 50HZ/60HZ Anti-flicker Function

Image Operations
Zoom In/Zoom Out, Mirror/Flip, Freeze, Cross Line, Overlay, Embedded Files Browser, Video Playback, Measurement Function

Restore Factory Settings
Restore camera parameters to its factory status

Multi-language Support
English/Simplified Chinese/Traditional Chinese/Korean/Thai/French/German/Japanese/Italian/Russian.

Lighting Modules

Ring Light Source
Brightness adjustable LED illuminated ring light source (wireless)

Power Supply Method
Integrated power supply, from now on no more power cord tangle trouble, sample observation more comfortable

Installation
Quick second suction mounting for convenience and simplicity

Brightness Adjustment
Light intensity adjustment via software interface

Zoom Lens Standard Configuration Parameters

Optical Parameter

Zoom Lens
ZM0840 zoom lens, 0.8X-4.0X zoom range

Working Distance
40mm-160mm (Determined by the auxiliary objective)

Numerical Aperture (NA)
0.015-0.052 (With 1x auxiliary objective)

Resolution
22.98um-6.44um (With 1x auxiliary objective)

Field of View
15.97-1.14mm

Optional Auxiliary Objective
0.50x, 1.00x, 2.00x (Optional)

Dimensions
141.5mm x 44mm (PZM0840H1080PA-EDRL)/145mm x 44mm (PZM0840H1080PA-DRL)

Bracket Interface
Standard 40mm
